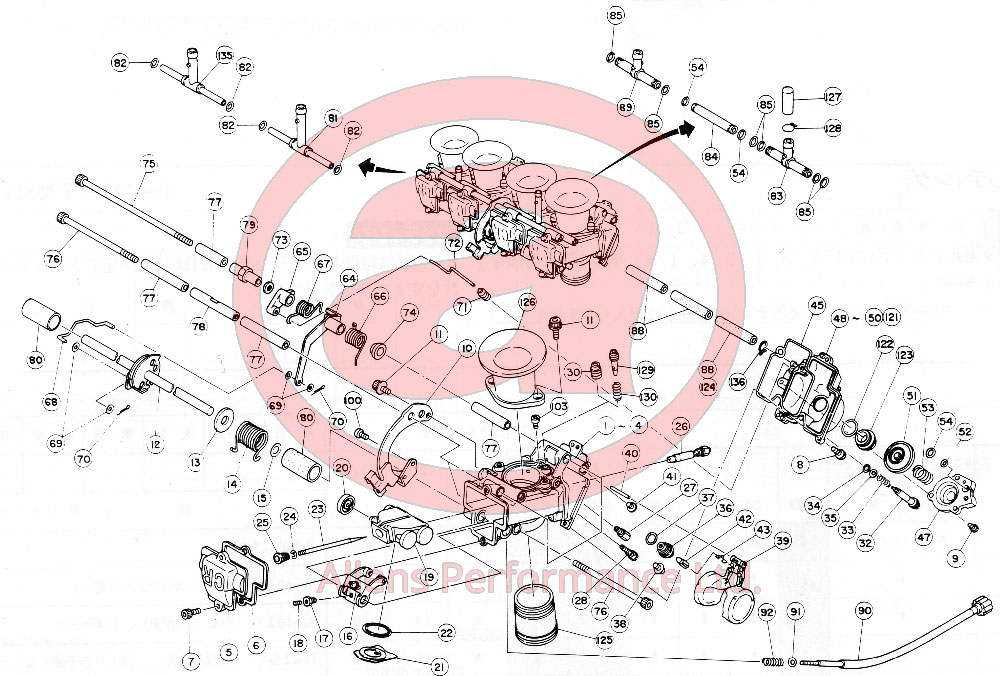

| Position |
Part Number |
Description |
| 1 |
|
Carburettor Body |
| 2 |
|
Carburettor Body |
| 3 |
|
Carburettor Body |
| 4 |
|
Carburettor Body |
| 5 |
1030-850-2000 |
Carburettor Top |
| 6 |
1031-805-2000 |
Gasket: Carburettor Top |
| 7 |
0136-807-1100 |
Screw: Carburettor Top |
| 8 |
0136-807-1100 |
Screw: Float Bowl |
| 9 |
0136-808-1100 |
Screw: Pump Diaphragm Cover |
| 10 |
1190-256-43G4, 1190-979-2102, 1190-979-2200, 1190-979-2300, 1190-979-2400, 1190-A05-2100 |
Bracket: Throttle Cable |
| 11 |
0136-803-1100 |
Screw: Throttle Cable Bracket, V Stack |
| 12 |
5025-945-2100, 5025-951-2100, 5025-952-2100, 5025-953-2100, 5025-954-2100, 5025-955-2100, 5025-977-2100, 5025-982-2100 |
Throttle Shaft |
| 13 |
1118-985-7000 |
Seat: Throttle Return Spring |
| 14 |
1305-932-2001 |
Spring: Throttle Return |
| 15 |
0301-092-7000 |
Shim: Throttle Shaft Axial Thrust |
| 16 |
1061-815-2100 |
Lifting Arm |
| 17 |
0208-811-1101 |
Lock Nut: Throttle Valve Synchronisation |
| 18 |
1034-836-2000 |
Screw: Adjusting Throttle Valve Synchronisation |
| 19 |
N501-18×00 |
Throttle Valve |
| 20 |
1119-803-7002 |
Roller: Throttle Valve |
| 21 |
1609-801-2101 |
Sealing Plate: Throttle Valve |
| 22 |
1099-816-6001 |
Seal: Throttle Valve Sealing Plate |
| 23 |
N427-90-size |
Jet Needle |
| 24 |
0403-802-1000 |
E-clip: Jet Needle |
| 25 |
1421-800-2000 |
Retainer: Jet Needle |
| 26 |
1154-835-2100 |
Needle Jet/Nozzle |
| 27 |
99101-357-size |
Main Jet |
| 28 |
N424-25B-size |
Pilot Jet |
| 30 |
99101-124-size |
Air Jet: Pilot Circuit (Or Use #129, #130) |
| 32 |
N446-05A00 |
Pilot Mixture Screw |
| 33 |
1290-812-2001 |
Spiring: Pilot Mixture Screw |
| 34 |
W9351-11028 |
O-ring: Pilot Mixture Screw |
| 35 |
0301-803-2000 |
Washer: Pilot Mixture Screw |
| 36 |
N361-03-size |
Float Valve Seat (Pump) |
| 36 |
N361-04(3?)-size |
Float Valve Seat (Gravity) |
| 37 |
W9351-13090 |
O-ring: Float Valve Seat |
| 38 |
0118-804-1100 |
Screw: Retaining Float Valve Seat |
| 39 |
1052-837-2200 |
Float Assy |
| 40 |
W9525-25250 |
Pivot Pin: Float Assy |
| 41 |
93500-04008 |
Screw: Retaining Float Pivot Pin |
| 42 |
1062-814-2100 |
Float Valve (Gravity) |
| 42 |
W9522-53001 |
Float Valve (Pump) |
| 43 |
0405-019-1000 |
Clip: Retaining Float Valve |
| 45 |
1202-846-6000 |
Seal: Float Bowl |
| 47 |
1230-826-2001 |
Cover: Accelerator Pump Diaphragm |
| 48 |
1050-864-2100 |
Float Bowl |
| 49 |
1050-863-2100, 1050-865-2100 |
Float Bowl |
| 50 |
1050-862-2100 |
Float Bowl |
| 51 |
1201-055-2102 |
Diaphragm: Accelerator Pump |
| 52 |
W9353-36000 |
Seal: Accelerator Pump (U-ring) |
| 53 |
1300-142-2000 |
Spring: Accelerator Pump Return |
| 54 |
16178-548-0040 |
O-ring: Accelerator Pump, Fuel Transfer Pipe |
| 54 |
W9351-19058 |
O-ring: Accelerator Pump |
| 64 |
1100-868-2100 |
Crank, Main: Accelerator Pump |
| 65 |
1100-867-7002 |
Crank, Slave: Accelerator Pump |
| 66 |
1305-933-2000 |
Spring: Main Accelerator Pump Crank |
| 67 |
1305-939-2001 |
Spring: Slave Accelerator Pump Crank |
| 68 |
1458-825-2000 |
Connecting Rod: Accelerator Pump |
| 69 |
0301-136-7000 |
Washer: Accelerator Pump Pivots (Plastic) |
| 70 |
16181-PC3-7810-H1 (Old #) |
Split Pin: Accelerator Pump Pivots |
| 70 |
W9251-12081 |
Split Pin: Accelerator Pump Pivots |
| 71 |
1028-825-2001 |
Dust Cover: Accelerator Pump Rod |
| 72 |
1458-826-2000 |
Rod: Accelerator Pump |
| 73 |
0301-114-1000 |
Washer: Accelerator Pump Slave Crank |
| 73 |
W1795-097-9900 (Old #?) |
Washer: Accelerator Pump Slave Crank |
| 74 |
W1704-241-9900 |
Seat: Main Accelerator Pump Crank Spring |
| 74 |
W1704-241-9900 (Old #?) |
Seat: Main Accelerator Pump Crank Spring |
| 75 |
0136-802-1100, 0136-810-1100, 0136-816-1100 |
Screw: Clamping Carb Bodies |
| 76 |
0136-801-1100, 0136-809-1100, 0136-811-1100 |
Screw: Clamping Carb Bodies |
| 77 |
N704-01050, N704-01053, N704-01056, N704-01060 |
Spacer: Carb Body Pitch |
| 78 |
N704-02050, N704-02053, N704-02060, N704-02068, N704-02077, N704-02081, N704-02083, N704-02089 |
Spacer: Carb Body Pitch (Threaded) |
| 79 |
1118-959-2000, N704-03068, N704-03077, N704-03081, N704-03083, N704-03089, N704-04068 |
Spacer: Carb Body Pitch (With Hex) |
| 80 |
0804-985-0000, 0804-988-0000, 0804-990-0000, 0804-A01-0000 |
Sleeve: Throttle Shaft |
| 81 |
1077-826-7000 |
T-piece: Breather |
| 82 |
W9353-65000 |
Seal: Breather T-piece |
| 83 |
1077-804-7000 |
T-piece: Fuel Inlet (Short) |
| 84 |
1075-834-2000 |
T-piece: Fuel Inlet (Long) |
| 84 |
1075-835-2000, 1075-836-2000 |
Tube: Fuel Transfer |
| 85 |
W9351-13057 |
O-ring: Fuel Inlet T-piece |
| 88 |
0804-444-0000, 0804-991-0000, W1785-032-9900 |
Hose: Accelertor Pump Transfer |
| 89 |
1077-804-7000, 1077-825-7000 |
T-piece: Fuel Inlet |
| 90 |
1034-815-3300, 1034-837-2100 |
Tickover Screw (Long?) |
| 91 |
0301-078-1200 |
Washer: Tickover Screw |
| 92 |
1290-908-2000 |
Spring: Tickover Screw |
| 92 |
1300-112-2000 |
Spring: Tickover Screw |
| 100 |
0136-804-1100 |
Screw: Throttle Cable Bracket |
| 103 |
99101-393-2000 |
Air Jet: Main |
| 121 |
1050-863-2100 |
Float Bowl |
| 122 |
16075-935-0060 |
O-ring: Drain Screw |
| 122 |
W9351-19145 |
O-ring: Drain Screw |
| 123 |
1018-804-2000 |
Screw: Float Bowl Drain |
| 124 |
0804-437-0001, 0804-986-0000, 0804-987-0000, 0804-A13-0000 |
Spacer: Carb Body Pitch |
| 125 |
1253-867-2000 |
Spigot |
| 126 |
1130-806-7002 |
Velocity Stack: 50mm (Blue) |
| 126 |
1130-809-7000 |
Velocity Stack: 35mm (Red) |
| 127 |
1028-808-7000 |
Cap: Fuel Inlet T-piece |
| 128 |
W9535-55000 |
Clip: Fuel Inlet T-piece Cap |
| 129 |
1014-817-2000 |
Pilot Air Screw (Or Use #30) |
| 130 |
16052-KM4-0040 |
Spring: Pilot Air Screw (Or Use #30) |
| 135 |
1077-806-7001 |
T-piece: Breather |
| 136 |
W9535-35000 |
Clip: Accelerator Pump Transfer Hose |
