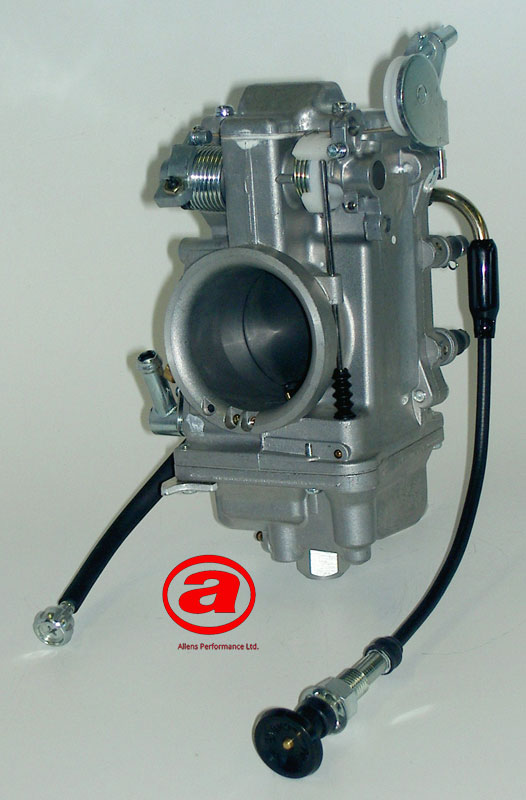

HSR48 (TM48-2) Data Set
Mikuni recommend that engines producing more than 120 hp should use an electric fuel pump at less than 4psi with the 2.3mm float valve assy
The carb can be mounted using the HS42/062-48 manifold. This should fit an S&S ‘G’ manifold but it will add a little extra to the total length of the installation.
| MOUNT TYPE | Spigot | MAIN JET | N100604-Size | 190 |
| TICKOVER POSITION | Left | PILOT JET | VM28/486-Size | 25 |
| COLD START POSITION | Right | NEEDLE JET | 784-430000-Size (723) | Y-6 |
| COLD START TYPE | Cable | JET NEEDLE | 8CFY15-97 | Clip groove #3 |
| AIR SCREW POSITION | Left | STARTER JET | Fixed | — |
| FLANGE PITCH (MM) | — | PILOT AIR JET | — | — |
| CLAMP DIA (MM) | — | PILOT AIR SCREW | VM20/584-Size | — |
| FRONT SPIGOT DIAMETER (MM) | — | MAIN AIR JET | BS30/97-Size | 0 |
| REAR SPIGOT DIAMETER (MM) | — | POWER JET | — | — |
| LENGTH (MM) | — | THROTTLE VALVE | — | — |
| HEIGHT OVER BORE CENTRELINE (MM) | — | FLOAT VALVE | 786-27001-1A-Size | 4.5 |
| HEIGHT UNDER BORE CENTRELINE (MM) | — | PUMP NOZZLE | TM42/11-Size | 0.70 |
| FUEL INLET POSITION | Left | — | — | — |
| FLOAT HEIGHT (MM) | 18 | — | — | — |
| FUEL SPIGOT (MM) | 8 |
