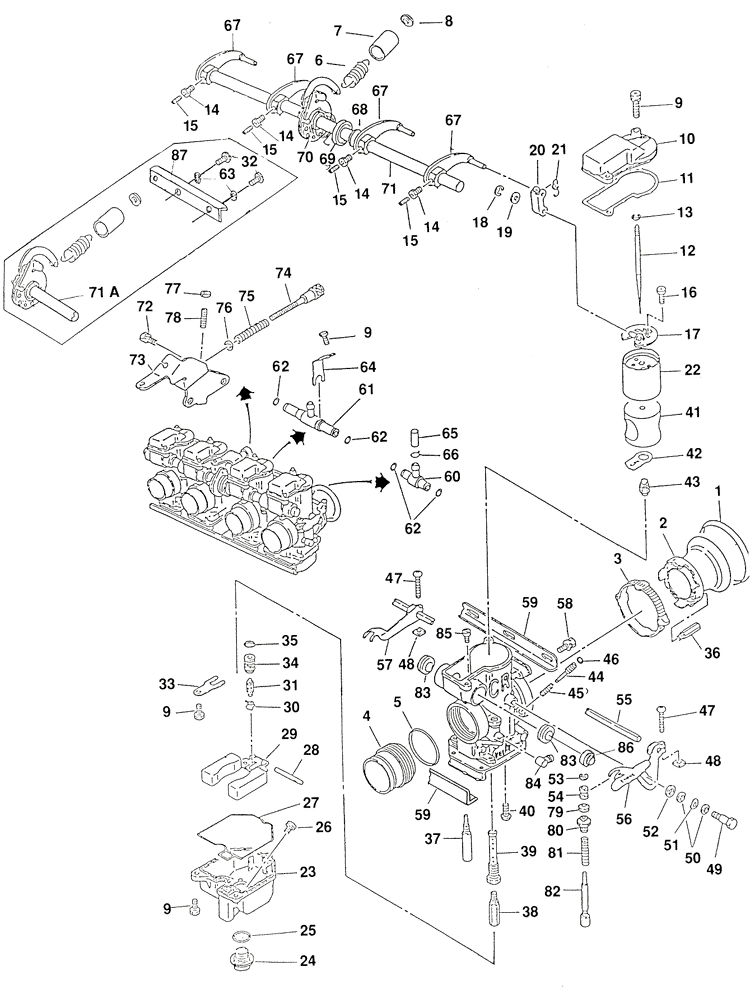

| Position | Description | Part Number | Position | Description | Part Number |
| 1 | Rubber Cap | 1028-809-7000 | 45 | Spring | 1290-003-2001 |
| 2 | Velocity Stack SH | 1130-802-2001 | 46 | O-Ring | 0901-006-6000 |
| 2a | Velocity Stack LN | 1130-803-2001 | 47 | Screw | 4110-801-1100 |
| 3 | Clamp | 1129-804-7000 | 48 | Nut | 0205-800-1100 |
| 4 | Mount Adaptor | 1253-xxx-xxxx | 49 | Bolt | 0118-801-1100 |
| 4a | Mount Adaptor | N195-size | 50 | Plain Washer (Steel) |
0301-009-1100 |
| 5 | O-Ring | 0901-012-6000 | 51 | Wave Washer (Wave) |
2007-800-2000 |
| 6 | Tension Spring | 1291-804-2000 | 52 | Plain Washer (Plastic) |
0301-104-7000 |
| 7 | Tube | 0804-846-0000 | 53 | Clip | W9302-25000 |
| 8 | Collar | 1118-878-2000 | 54 | Collar | 1118-801-2000 |
| 9 | Screw | W9155-04060 | 55 | Shaft | 1111-813-2000 |
| 10 | Top | 1030-814-2002 | 56 | Lever | 1113-861-2001 |
| 11 | Gasket | 1031-802-2002 | 57 | Lever | 1113-862-2000 |
| 12 | Jet Needle | N427-51-size | 58 | Screw | 4139-804-1100 |
| 12a | Jet Needle | N/A | 59 | Bracket | 1190-833-2000 |
| 13 | Clip | 0403-802-1000 | 59a | Bracket | N/A |
| 14 | Lock Nut | 0208-803-1200 | 59b | Bracket | N/A |
| 15 | Stop Screw | 1034-814-2000 | 59c | Bracket | N/A |
| 16 | Screw | W9155-04060 | 60 | T-Joint | 1077-804-7000 |
| 17 | Valve Plate | 1019-801-2102 | 61 | T-Joint | 1077-803-7000 |
| 18 | Clip | 16179-676-3000 | 62 | O-Ring | W9351-13057 |
| 19 | Plain Washer | 0301-825-7000 | 63 | Washer | 0301090-1201 |
| 20 | Link Arm | 1061-805-2000 | 64 | Plate | 1190-832-2000 |
| 21 | Spring | 1291-802-2000 | 65 | Rubber Cap | 1028-808-7000 |
| 22 | Throttle Valve | N502-03×00 | 66 | Clip | W9535-55000 |
| 23 | Float Bowl | 1050-825-2000 | 67 | Link Lever | 1100-836-2100 |
| 24 | Drain Screw | 1018-801-2000 | 68 | Collar | 1118-861-7000 |
| 25 | O-Ring | 16173-001-0040 | 69 | Collar | 1118-860-7000 |
| 26 | Starter Jet | 1001-108-2000-size | 70 | Spring | 1305-883-2000 |
| 27 | O-Ring | 0901-811-6000 | 71 | Throttle Shaft | 5025-847-2200 |
| 28 | Arm Pin | W9525-25250 | 71a | Throttle Shaft | 5025-931-2100 |
| 29 | Float Assy | 1052-818-2100 | 72 | Screw | 4139-803-1100 |
| 30 | Clip | 0405-019-1000 | 73 | Bracket (Std, Upward) Bracket (45° Forward) |
1190-831-2002 1190-904-2000 |
| 31 | Needle Valve | W9522-53001 | 74 | Idle Speed Screw | 1034-808-2000 |
| 74a | Idle Speed Screw (Flexible) | 1034-902-2100 | |||
| 32 | Screw | N114-06161 | 75 | Spring | 1290-849-2003 |
| 33 | Plate | 1164-038-2000 | 76 | Plain Washer | 16178-ML7-0040 |
| 34 | Valve Seat | N360-01×00 | 77 | Nut | 94001-05080-0S |
| 35 | O-Ring | W9351-13080 16075-MB0-0030 (Old #) |
78 | Screw | 93500-05025-1H |
| 36 | Main Air Jet | N424-14-size | 79 | Rubber Cap | 1028-042-7001 |
| 37 | Slow Jet | N424-24-size | 80 | Cap | 1029-805-7000 |
| 38 | Main Jet | 99101-357-size | 81 | Spring | 1300-136-2000 |
| 39 | Nozzle Holder (N/A?) |
N413-04×00 | 82 | Starter Valve | 1166-802-2101 |
| 39a | Nozzle Holder | N426-04000 | 83 | Seal | 1099-805-7000 |
| 40 | Screw | 4115-800-1101 | 84 | L-Joint | 1074-817-7001 |
| 41 | Jet Block | 1605-xxx-2001 | 85 | Starter Jet | 1001-101-2000-size |
| 42 | Gasket | 1202-808-2002 | 86 | Cap | 1096-810-2000 |
| 43 | Nozzle (Flat Type) |
1041-800-2001 | 87 | Bracket | 1190-870-2000 |
| 44 | Air Screw | 1014-004-2002 |
Keihin CR Smoothbore Carb Large Body (35,37,39mm) Data Set
