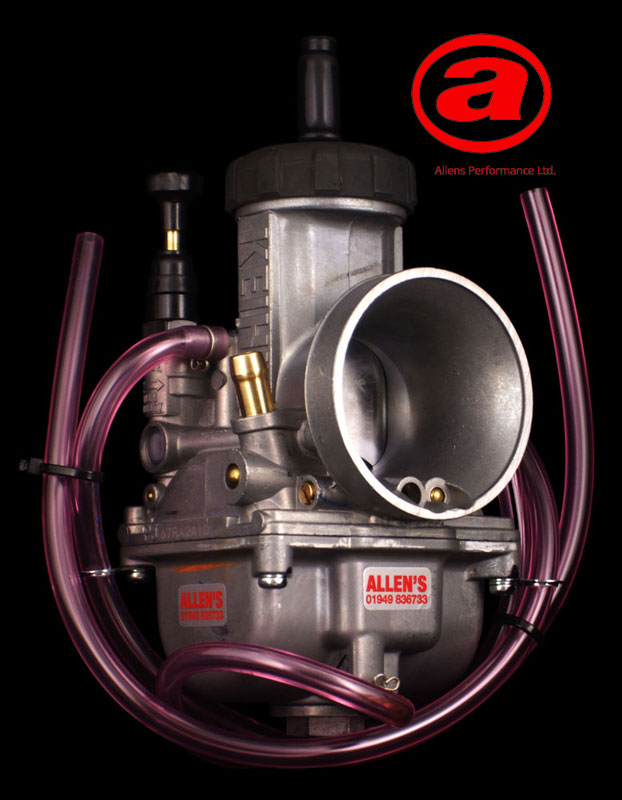

PJ34-67R Data Set
|
 |
| Position | Description | Part No | ||
| 34mm | 36mm | 38mm | ||
| 1 | Cap, Cable Adj. | 16118-166-0040 | 16118-166-0040 | 16118-166-0040 |
| 2 | Cable Adjuster | W9581-59250 | W9581-59250 | W9581-59250 |
| 3 | Nut, Cable Adj. | W1793-130-9900 | W1793-130-9900 | W1793-130-9900 |
| 4 | Top | W1591-130-9910 | W1591-130-9910 | W1591-131-9910 |
| 5 | Gasket, Top | 16110-NC8-0040 | 16110-NC8-0040 | 16110-ND5-7610-M1 |
| 6 | Throttle Spring | 16050-KA3-7610-M1 | 16050-KA4-7710-M1 | 16050-KA5-6910-M1 |
| 7 | Cable Holder | 16137-KA3-7610-M1 | 16137-KA3-7610-M1 | 16137-KA3-7610-M1 |
| 8 | Collar | 16066-KA3-7610-M1 | 16066-KA3-7610-M1 | 16066-KA3-7610-M1 |
| 9 | Spring | 16051-KA3-7610-M1 | 16051-KA3-7610-M1 | 16051-KA3-7610-M1 |
| 10 | Clip, Jet Needle | 16115-169-0040 | 16115-169-0040 | 16115-169-0040 |
| 11 | Jet needle | N427-48-size | N427-48-size | N427-48-size |
| 12 | Throttle Valve | W1502-2Jx-9900 | N502-22xx0-00 | N502-23xx0-00 |
| 13 | Starter Valve | 16046-KA3-7610-M1 | 16046-KA3-7610-M1 | 16046-KA5-6911 |
| 14 | Air Adj. Screw | W1446-231-9900 | W1446-231-9900 | W1446-231-9900 |
| 15 | Spring | W1711-416-9900 | W1711-416-9900 | W1711-416-9900 |
| 16 | Main Jet | 99101-357-size | 99101-357-size | 99101-357-size |
| 17 | Slow Jet | N424-21-size | N424-21-size | N424-21-size |
| 18 | Buffer Plate | 16185-KA3-7610-M1 | 16185-KA3-7610-M1 | 16185-KA3-7610-M1 |
| 19 | Bowl Vent Pipe | 95003-07033-31 | 95003-07033-31 | 95003-07033-31 |
| 20 | Clip | W9535-35000 | W9535-35000 | W9535-35000 |
| 21 | Float Valve | 16155-ND4-7510-M1 | 16155-ND4-7510-M1 | 16155-ND4-7510-M1 |
| 22 | Clip, Float Valve | W1782-013-9900 | W1782-013-9900 | W1782-013-9900 |
| 23 | Float Pin | W9525-25250 | W9525-25250 | W9525-25250 |
| 24 | Float | W1310-079-9921 | W1310-079-9921 | W1310-079-9921 |
| 25 | Gasket, Float Bowl | 16163-ND4-7510-M1 | 16163-ND4-7510-M1 | 16163-ND4-7510-M1 |
| 26 | Float Bowl | W1350-289-9910 | W1350-289-9910 | W1350-289-9910 |
| 27 | Anchor Plate | 16179-428-6711 | 16179-428-6711 | 16179-428-6711 |
| 28 | Screw, Float Bowl | 93500-04014-1H | 93500-04014-1H | 93500-04014-1H |
| 29 | Plug Screw Washer | 16173-001-0040 | 16173-001-0040 | 16173-001-0040 |
| 30 | Plug Screw | 16162-ND4-7511-M1 | 16162-ND4-7511-M1 | 16162-ND4-7511-M1 |
| 31 | Overflow Pipe | 95003-05027-31 | 95003-05027-31 | 95003-05027-31 |
| MOUNT TYPE | Spigot | MAIN JET | 99-101-357-Size | 152 |
| TICKOVER POSITION | On Choke (Left) | PILOT JET | N424-21-Size | 55 |
| COLD START POSITION | Left | NEEDLE JET | Fixed | — |
| COLD START TYPE | Knob | JET NEEDLE | N427-48-CEG | Clip groove #3 |
| AIR SCREW POSITION | Left | STARTER JET | Fixed | — |
| FLANGE PITCH (MM) | — | PILOT AIR JET | — | — |
| CLAMP DIA (MM) | — | PILOT AIR SCREW | W1446-231-9900 | — |
| FRONT SPIGOT DIAMETER (MM) | 41 | MAIN AIR JET | — | — |
| REAR SPIGOT DIAMETER (MM) | 59 | POWER JET | — | — |
| LENGTH (MM) | 91 | THROTTLE VALVE | W1502-2Jx-9900 | 6.0 |
| HEIGHT OVER BORE CENTRELINE (MM) | — | FLOAT VALVE | 16155-ND4-7510-M1 | — |
| HEIGHT UNDER BORE CENTRELINE (MM) | — | — | — | — |
| FUEL INLET POSITION | Left | — | — | — |
| FLOAT HEIGHT (MM) | 16 | — | — | — |
| FUEL SPIGOT (MM) | 8 |
