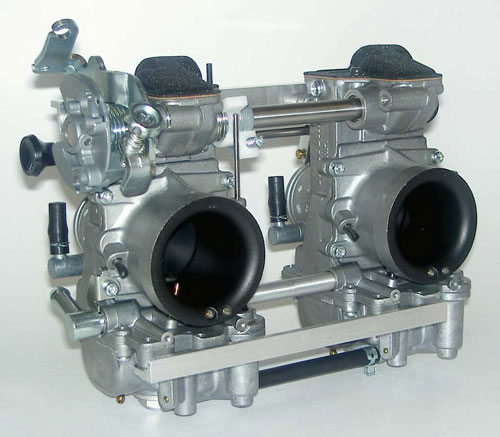

RS34 DUALS FOR XS650/Z750 TWIN Data Set
(TM34-B120)
| 1 – 4 | N/A | Carburettor Body: Front |
| 5 | TM36/69 | Float Bowl #1 |
| 6 | TM36/71 | Float Bowl #2 |
| 7 | TM36/73 | Float Bowl #3 |
| 8 | TM36/75 | Float Bowl #4 |
| 9 | N/A | Carburettor Body: Rear |
| 11 | TM27/05A | Spring Clip: Throttle Valve Link |
| 12 | BSW28/70 | E-clip: Throttle Valve Link |
| 13 | M10/56 | Washer: Throttle Valve Link |
| 14 | B40I/10 | Shim: Throttle Valve Link |
| 15 | TM27/04 | Throttle Valve Link |
| 16 | TM29/65 | Bush: Throttle Valve Link |
| 17 | C5=0518 | Screw: Throttle Valve Synchronisation |
| 18 | TM36/06 | Lock Nut: Throttle Valve Synchronisation |
| 19 | TM36/39 | Gasket: Carburettor Top |
| 20 | TM36/59 | Carburettor Top |
| 21 | TM36/51 | Lifting Arm: Throttle Valve (#1, #2, #4) |
| 22 | N/A | Gasket: Carburettor Body |
| 23 | 739-13001 | Screw: Throttle Valve Link Plate |
| 24 | VM18/341 | E-clip: Jet Needle (RS32, RS34, RS36) |
| 24a | TM32/90 | E-clip: Jet Needle (RS38, RS40) |
| 25 | VM26/315 | Washer: Jet Needle (RS32, RS34, RS36) |
| 25a | 826-03002 | Washer: Jet Needle (RS38, RS40) |
| 26 | TM36/54 | Throttle Valve Link Plate |
| 27 | TM36/81-1A | Throttle Valve (RS32, RS34, RS36) |
| 27a | TM36/81-1D | Throttle Valve (RS38, RS40) |
| 28 | N133037 | O-ring: Pilot Mixture Screw |
| 29 | VM12/33 | Washer: Pilot Mixture Screw |
| 30 | N133206 | Spring: Pilot Mixture Screw |
| 31 | 604-26003 | Pilot Mixture Screw |
| 32 | 616-94020 | Seal: Float Bowl (No Pump, #1, #3, #4) |
| 33 | J8-##### | Jet Needle |
| 34 | VM28/486-size | Pilot Jet |
| 35 | VM28/254 | O-ring: Float Bowl Drain |
| 36 | N100604-size | Main Jet |
| 37 | 784-13002-size | Needle Jet |
| 38 | 859-32011 | Floats |
| 39 | VM30/160 | Pivot Pin: Floats |
| 40 | N149040-size | Float Valve Assy |
| 41 | KV/10 | O-ring: Float Valve Assy |
| 42 | VM18/233 | Filter: Float Valve Assy |
| 43 | BS30/97-0.0 | Air Jet: Slow Circuit |
| 44 | C5=0512 | Screw: Throttle Cable Bracket |
| 45 | TM36/57 | Lifting Arm: Throttle Valve (#3) |
| 46 | C5=0514 | Screw: Lifting Arm (#3) |
| 47 | VM28/174 | Shim: Lifting Arm (#3) |
| 48 | N/A | Lock Nut |
| 49 | TM36/12 | Retainer: Jet Needle |
| 50 | C2=0310 | Screw Jet Needle Retainer |
| 51 | B21/29 | Spring: Cold Start Shaft |
| 52 | B21/28 | Ball: Cold Start Shaft |
| 53 | N151038 | Punger: Cold Start |
| 54 | VM16/42 | Spring: Cold Start |
| 55 | 640-12002 | Retainer: Cold Start |
| 56 | N138198 | O-ring: Cold Start |
| 57 | N106211 | Dust Cover: Cold Start |
| 58 | VM17/1002-size | Starter Jet |
| 59 | N124063 | O-ring: Pump Nozzle |
| 60 | TM29/14 | Seal: Pump Nozzle |
| 61 | TM36/43-size | Pump Nozzle |
| 62 | N158052 | Screw: Cold Start Bracket |
| 63 | N178656 | Bracket: Cold Start Shaft |
| 64 | TM36/37d | Bracket: Throttle Cables |
| 65 | TM36/48A | Screw: Adjusting Pump |
| 66 | TM36/31 | Bellcrank: Throttle Shaft |
| 67 | N2=03-B | Lock Nut |
| 68 | N138019 | Roll Pin: Throttle Shaft Bellcrank |
| 69 | 739-55003 | Tickover Screw |
| 70 | N110209 | Spring: Tickover Screw |
| 71 | N148013 | Cap: Vacuum Fitting |
| 72 | BVK28/128 | Clip: Vacuum Fitting Cap |
| 73 | VM13/216 | Screw: Retaining Float Valve Seat |
| 74 | TM36/34a | Rod & Knob: Cold Start |
| 75 | C2=0508-B | Screw |
| 77a | 700-17011 | Throttle Shaft (#3 crank) |
| 77b | 700-17012 | Throttle Shaft (#1 crank) |
| 77c | 700-17013 | Throttle Shaft (#3 crank) |
| 78 | CW2=0408 | Screw: Carb Top |
| 79 | TM36/46a | Spring: Throttle Return |
| 80 | TM36/33 | Crank: Throttle Return |
| 81 | TM33/63a | Plug: Throttle Shaft End |
| 82 | N/A | Screw: Carburettor Body |
| 83 | 888-44003 | Hose: Pump Transfer |
| 84 | 791-23018 | T-piece: Fuel Feed |
| 85 | 616-23002 | O-ring: Fuel T-piece |
| 86 | 888-44004 | Hose: Pump Transfer |
| 87 | 792-20014 | Pipe: Fuel Transfer |
| 88 | E100729-BB | Clip: Pump Transfer Hose |
| 89 | C2=0512-B | Screw: Carb Rail Mounting |
| 90 | BS30/97-size | Air Jet: Main Circuit |
| 91 | TM36/17 | Pump Cam |
| 92 | BN38/43 | Roll Pin: Pump Crank |
| 93 | B30/205 | O-ring: Pump Adjuster |
| 94 | TM36/18 | Crank: Pump |
| 95 | TM36/45 | Spring: Pump Cam |
| 96 | TM36/35 | Bracket: Upper Rail |
| 97 | TM36/44 | Pump Rod |
| 98 | M12F/46A | Spring: Pump Cam Adjuster |
| 99 | MC-0316-B | Screw: Pump Cam Adjuster |
| 100 | N3=03-B | Lock Nut: Pump Cam Adjuster |
| 101 | TM36/64 | Dust Cover: Pump Rod |
| 102 | TM36/36 | Bracket: Lower Rail |
| 103 | 616-94021 | Seal: Float Bowl (With Pump, #2) |
| 104 | TM36/60a | Piston: Pump |
| 105 | VM14SC13/89 | Spring: Pump Piston |
| 106 | C2=0412-B | Screw: Float Bowl |
| 107 | VM33/77 | Screw: Float Bowl Drain |
| 108 | E204040 | Spring Seat: Pump Cam |
| 109 | 888-23026a | Hose: Overflow |
| 110 | TM36/63 | Crank: Starter Cable |
| 111 | 730-06027 | Spring: Starter Cable Crank |
| 112 | TM36/61 | Bracket: Cold Start Cable |
USES ORIGINAL 3L1 YAMAHA INTAKE MANIFOLDS
