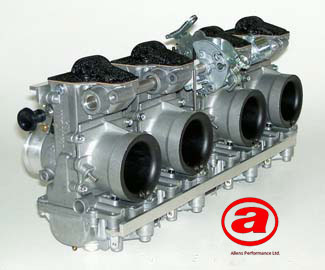

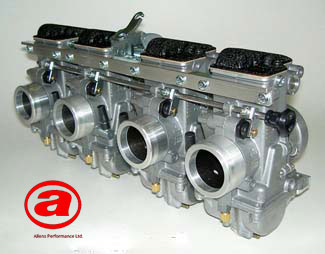

| 1 – 4 |
N/A |
Carburettor Body: Front |
| 5 |
TM36/69 |
Float Bowl #1 |
| 6 |
TM36/71 |
Float Bowl #2 |
| 7 |
TM36/73 |
Float Bowl #3 |
| 8 |
TM36/75 |
Float Bowl #4 |
| 9 |
N/A |
Carburettor Body: Rear |
| 11 |
TM27/05A |
Spring Clip: Throttle Valve Link |
| 12 |
BSW28/70 |
E-clip: Throttle Valve Link |
| 13 |
M10/56 |
Washer: Throttle Valve Link |
| 14 |
B40I/10 |
Shim: Throttle Valve Link |
| 15 |
TM27/04 |
Throttle Valve Link |
| 16 |
TM29/65 |
Bush: Throttle Valve Link |
| 17 |
C5=0518 |
Screw: Throttle Valve Synchronisation |
| 18 |
TM36/06 |
Lock Nut: Throttle Valve Synchronisation |
| 19 |
TM36/39 |
Gasket: Carburettor Top |
| 20 |
TM36/59 |
Carburettor Top |
| 21 |
TM36/51 |
Lifting Arm: Throttle Valve (#1, #2, #4) |
| 22 |
N/A |
Gasket: Carburettor Body |
| 23 |
739-13001 |
Screw: Throttle Valve Link Plate |
| 24 |
VM18/341 |
E-clip: Jet Needle (RS32, RS34, RS36) |
| 24a |
TM32/90 |
E-clip: Jet Needle (RS38, RS40) |
| 25 |
VM26/315 |
Washer: Jet Needle (RS32, RS34, RS36) |
| 25a |
826-03002 |
Washer: Jet Needle (RS38, RS40) |
| 26 |
TM36/54 |
Throttle Valve Link Plate |
| 27 |
TM36/81-1A |
Throttle Valve (RS32, RS34, RS36) |
| 27a |
TM36/81-1D |
Throttle Valve (RS38, RS40) |
| 28 |
N133037 |
O-ring: Pilot Mixture Screw |
| 29 |
VM12/33 |
Washer: Pilot Mixture Screw |
| 30 |
N133206 |
Spring: Pilot Mixture Screw |
| 31 |
604-26003 |
Pilot Mixture Screw |
| 32 |
616-94020 |
Seal: Float Bowl (No Pump, #1, #3, #4) |
| 33 |
J8-##### |
Jet Needle |
| 34 |
VM28/486-size |
Pilot Jet |
| 35 |
VM28/254 |
O-ring: Float Bowl Drain |
| 36 |
N100604-size |
Main Jet |
| 37 |
784-13002-size |
Needle Jet |
| 38 |
859-32011 |
Floats |
| 39 |
VM30/160 |
Pivot Pin: Floats |
| 40 |
N149040-size |
Float Valve Assy |
| 41 |
KV/10 |
O-ring: Float Valve Assy |
| 42 |
VM18/233 |
Filter: Float Valve Assy |
| 43 |
BS30/97-0.0 |
Air Jet: Slow Circuit |
| 44 |
C5=0512 |
Screw: Throttle Cable Bracket |
| 45 |
TM36/57 |
Lifting Arm: Throttle Valve (#3) |
| 46 |
C5=0514 |
Screw: Lifting Arm (#3) |
| 47 |
VM28/174 |
Shim: Lifting Arm (#3) |
| 48 |
N/A |
Lock Nut |
| 49 |
TM36/12 |
Retainer: Jet Needle |
| 50 |
C2=0310 |
Screw Jet Needle Retainer |
| 51 |
B21/29 |
Spring: Cold Start Shaft |
| 52 |
B21/28 |
Ball: Cold Start Shaft |
| 53 |
N151038 |
Punger: Cold Start |
| 54 |
VM16/42 |
Spring: Cold Start |
| 55 |
640-12002 |
Retainer: Cold Start |
| 56 |
N138198 |
O-ring: Cold Start |
| 57 |
N106211 |
Dust Cover: Cold Start |
| 58 |
VM17/1002-size |
Starter Jet |
| 59 |
N124063 |
O-ring: Pump Nozzle |
| 60 |
TM29/14 |
Seal: Pump Nozzle |
| 61 |
TM36/43-size |
Pump Nozzle |
| 62 |
N158052 |
Screw: Cold Start Bracket |
| 63 |
N178656 |
Bracket: Cold Start Shaft |
| 64 |
TM36/37d |
Bracket: Throttle Cables |
| 65 |
TM36/48A |
Screw: Adjusting Pump |
| 66 |
TM36/31 |
Bellcrank: Throttle Shaft |
| 67 |
N2=03-B |
Lock Nut |
| 68 |
N138019 |
Roll Pin: Throttle Shaft Bellcrank |
| 69 |
739-55003 |
Tickover Screw |
| 70 |
N110209 |
Spring: Tickover Screw |
| 71 |
N148013 |
Cap: Vacuum Fitting |
| 72 |
BVK28/128 |
Clip: Vacuum Fitting Cap |
| 73 |
VM13/216 |
Screw: Retaining Float Valve Seat |
| 74 |
TM36/34a |
Rod & Knob: Cold Start |
| 75 |
C2=0508-B |
Screw |
| 77a |
700-17011 |
Throttle Shaft (#3 crank) |
| 77b |
700-17012 |
Throttle Shaft (#1 crank) |
| 77c |
700-17013 |
Throttle Shaft (#3 crank) |
| 78 |
CW2=0408 |
Screw: Carb Top |
| 79 |
TM36/46a |
Spring: Throttle Return |
| 80 |
TM36/33 |
Crank: Throttle Return |
| 81 |
TM33/63a |
Plug: Throttle Shaft End |
| 82 |
N/A |
Screw: Carburettor Body |
| 83 |
888-44003 |
Hose: Pump Transfer |
| 84 |
791-23018 |
T-piece: Fuel Feed |
| 85 |
616-23002 |
O-ring: Fuel T-piece |
| 86 |
888-44004 |
Hose: Pump Transfer |
| 87 |
792-20014 |
Pipe: Fuel Transfer |
| 88 |
E100729-BB |
Clip: Pump Transfer Hose |
| 89 |
C2=0512-B |
Screw: Carb Rail Mounting |
| 90 |
BS30/97-size |
Air Jet: Main Circuit |
| 91 |
TM36/17 |
Pump Cam |
| 92 |
BN38/43 |
Roll Pin: Pump Crank |
| 93 |
B30/205 |
O-ring: Pump Adjuster |
| 94 |
TM36/18 |
Crank: Pump |
| 95 |
TM36/45 |
Spring: Pump Cam |
| 96 |
TM36/35 |
Bracket: Upper Rail |
| 97 |
TM36/44 |
Pump Rod |
| 98 |
M12F/46A |
Spring: Pump Cam Adjuster |
| 99 |
MC-0316-B |
Screw: Pump Cam Adjuster |
| 100 |
N3=03-B |
Lock Nut: Pump Cam Adjuster |
| 101 |
TM36/64 |
Dust Cover: Pump Rod |
| 102 |
TM36/36 |
Bracket: Lower Rail |
| 103 |
616-94021 |
Seal: Float Bowl (With Pump, #2) |
| 104 |
TM36/60a |
Piston: Pump |
| 105 |
VM14SC13/89 |
Spring: Pump Piston |
| 106 |
C2=0412-B |
Screw: Float Bowl |
| 107 |
VM33/77 |
Screw: Float Bowl Drain |
| 108 |
E204040 |
Spring Seat: Pump Cam |
| 109 |
888-23026a |
Hose: Overflow |
| 110 |
TM36/63 |
Crank: Starter Cable |
| 111 |
730-06027 |
Spring: Starter Cable Crank |
| 112 |
TM36/61 |
Bracket: Cold Start Cable |
