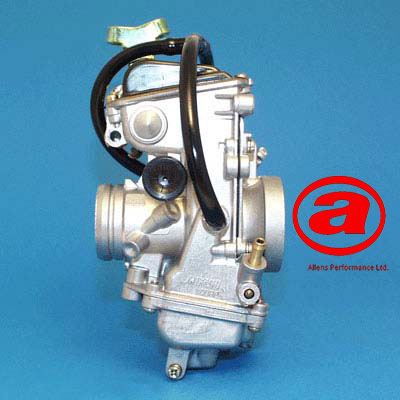

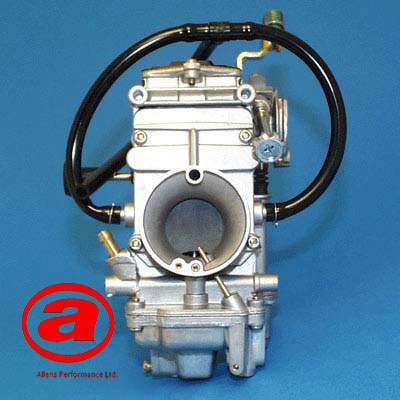

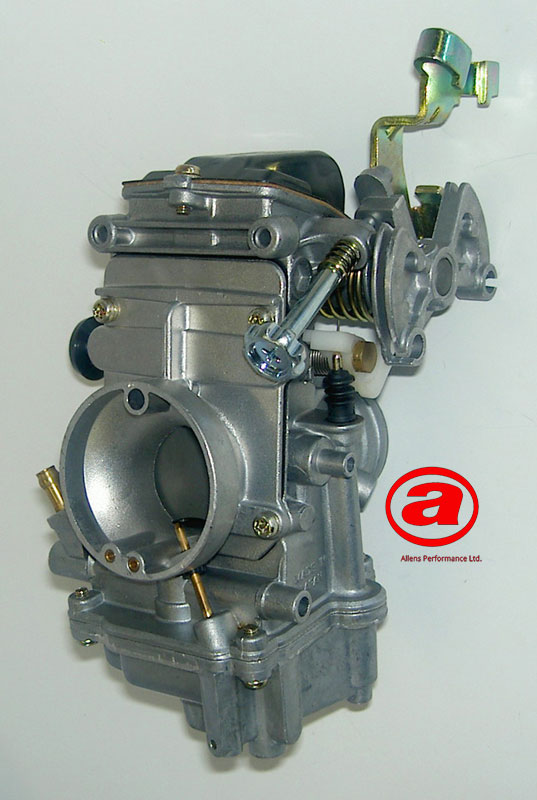

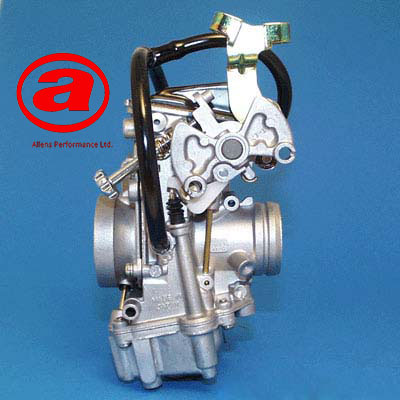

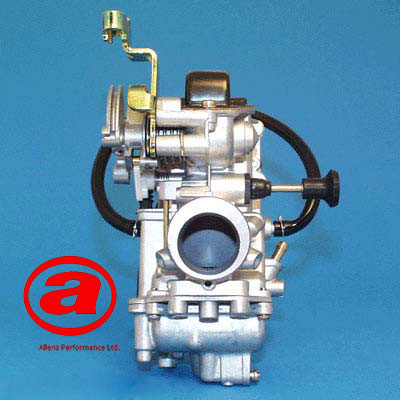

| Position |
Part Number |
Description |
| 1 |
CW2=0410 |
Screw: Carb Top |
| 2 |
TM29/16 |
Carburettor Top |
| 3 |
TM29/17 |
Gasket: Carb Top |
| 4 |
739-13001 |
Screw: Jet Needle Retainer |
| 5 |
TM29/71 |
Retainer: Jet Needle |
| 6 |
VM18/341 |
E-clip: Jet Needle |
| 7 |
VM26/315 |
Washer: Jet Needle |
| 8 |
J8-##### |
Jet Needle |
| 9 |
832-38007-size |
Throttle Valve |
| 10 |
TM29/62 |
Gasket: Carb Body |
| 11 |
VM34/195 |
Hose: Vent |
| 12 |
TM33/32a |
Carburettor Body: Rear |
| 13 |
VM38/133 |
Screw: Carb Body |
| 14 |
BS30/97-size |
Pilot Air Jet |
| 15 |
BS30/97-size |
Main Air Jet |
| 16 |
730-07008 |
Spring: Tickover Screw (TM33-12) |
| 16a |
N110209 |
Spring: Tickover Screw (TM28-1) |
| 17 |
TM33/38a |
Tickover Screw (TM33-12) |
| 17aa |
N136038 |
Tickover Screw (TM28-1) |
| 18 |
N189169 |
Holder: Tickover Screw |
| 19 |
VM30/160 |
Pivot: Floats |
| 20 |
859-34003 |
Floats |
| 21 |
N133200-size |
Float Valve Assy |
| 22 |
VM13/216 |
Screw: Retains Float Valve Assy |
| 23 |
KV/10 |
O-ring: Float Valve Assy |
| 24 |
VM18/233 |
Filter: Float Valve Assy |
| 25 |
TM33/35 |
Baffle: Main Jet |
| 26 |
VM38/106 |
Spacer: Main Jet |
| 27 |
N100604-size |
Main Jet |
| 28 |
VM28/486-size |
Pilot Jet |
| 29 |
616-94012 |
Seal: Float Bowl |
| 30 |
N133363 |
Drain Screw |
| 31 |
TM29/12d |
Float Bowl |
| 32 |
888-23043-1F |
Hose: Overflow |
| 33 |
C2=0416 |
Screw: Float Bowl (If flexible idle screw is used.) |
| 34 |
C2=0414 |
Screw: Float Bowl |
| 35 |
N124063 |
O-ring: Pump Nozzle |
| 36 |
TM29/24-size |
Pump Nozzle |
| 37 |
TM29/14 |
Seal: Pump Nozzle |
| 38 |
N138192 |
Pilot Mixture Screw |
| 39 |
N138187 |
Spring: Pilot Mixture Screw |
| 40 |
VM12/33 |
Washer: Pilot Mixture Screw |
| 41 |
N1333037 |
O-ring: Pilot Mixture Screw |
| 42 |
888-25029-1E |
Hose: Vent |
| 43 |
730-04003a |
Spring: Pump Piston |
| 44 |
TM29/18 |
Piston: Pump |
| 45 |
N150048 |
Dust Cover: Pump Rod |
| 46 |
TM33/46 |
Pump Rod (TM33-12) |
| 46a |
VM38/210 |
Pump Rod (TM28-1) |
| 47 |
B30/397 |
Screw: Pump Rocker |
| 48 |
VM38/212 |
Pump Rocker |
| 49 |
TM33/47 |
Spring: Pump Rocker (TM33-12) |
| 49a |
TM29/22 |
Spring: Pump Rocker (TM28-1) |
| 50 |
N/A |
Carburettor Body: Front |
| 51 |
C5=0510 |
Screw: Throttle Cable Bracket |
| 52 |
TM33/33 |
Bracket: Throttle Cable (TM33-12) |
| 52a |
VM38/197 |
Bracket: Throttle Cable (TM28-1) |
| 53 |
TM33/37 |
Bellcrank/Rollpin/Throttle Shaft Assy (TM33-12) |
| 53a |
TM29/34 |
Bellcrank/Rollpin/Throttle Shaft Assy (TM28-1) |
| 54 |
TM24/21 |
Spring: Throttle Valve Return (TM33-12) |
| 54a |
TM29/21 |
Spring: Throttle Valve Return (TM28-1) |
| 55 |
B36/95 |
Thrust Washer: Lifting Arm |
| 56 |
VM38/186 |
Lifting Arm |
| 57 |
W4=05 |
Washer |
| 58 |
VM28/230 |
Screw: Lifting Arm |
| 59 |
VM33/49c |
Spring Clip: Throttle Valve Link |
| 60 |
VM33/45 |
Throttle Valve Link |
| 61 |
M10/56 |
Washer: Throttle Valve Link |
| 62 |
BSW28/70 |
E-clip: Throttle Valve Link |
| 63 |
B40I/10 |
Washer: Throttle Valve Link |
| 64 |
TM33/49 |
Cold Start Assy (TM33-12) |
| 64a |
TM29/31 |
Cold Start Assy (TM28-1) |
| 65 |
N138198 |
O-ring: Cold Start Assy |
| 66 |
784-24111-size |
Needle Jet (TM33-12) |
| 66a |
784-24008-size |
Needle Jet (TM28-1) |
