TM36-2 Data Set

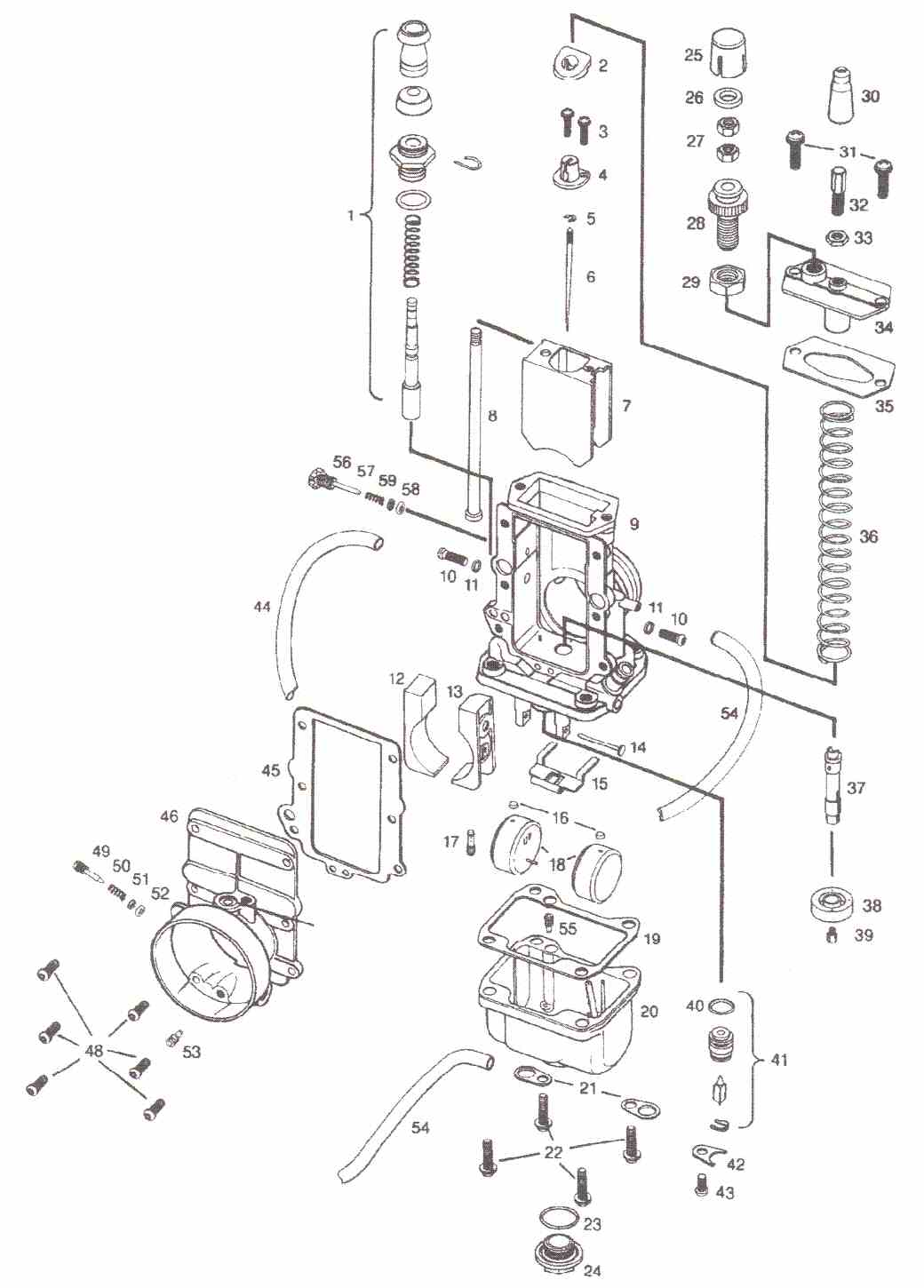

| # | Description | TM36-2 |
| 1 | Cold Start Assy | VM29/47 |
| 2 | Thrust pad: Throttle Spring | VM38/153 |
| 3 | Screw: Needle Retainer | CW2=0310 |
| 4 | Retainer: Jet Needle | VM38/152 |
| 5 | E-Clip: Jet Needle | VM18/341 |
| 6 | Jet Needle | # |
| 7 | Throttle Valve | 832-43002-size |
| 8 | Tickover Pushrod (Top Idle) | VM38/159 |
| 10 | Screw: Throttle Valve Guide | VM38/132 |
| 11 | Washer: Throttle Valve Guide | VM34/274 |
| 14 | Pivot: Float Arm | VM30/160 |
| 15 | Float Arm | VM36/15 |
| 16 | Retainer: Float | VM26/42 |
| 17 | Pilot Jet | VM22/210-size |
| 18 | Float | VM24/236 |
| 19 | Gasket: Float Bowl | VM34/374 |
| 20 | Float Bowl | TM32/02-size |
| 21 | Retainer: Vent Hose | VM34/103 |
| 22 | Screw: Float Bowl | CW2=0518 |
| 23 | Gasket: Drain Screw | VM28/254 |
| 24 | Drain Screw | VM28/253 |
| 25 | Dust Cover: Tickover Screw | VM35/40 |
| 26 | Sealing Ring | N138077 |
| 27 | Nut: Tickover Pushrod | N2=04 |
| 28 | Tickover Screw | 603-68001 |
| 29 | Locknut: Tickover Screw | BDC36/35 |
| 30 | Dust Cover: Cable Adjuster | VM18/228 |
| 31 | Screw: Carburettor Top | CW2=0412 |
| 32 | Cable Adjuster | VM36/83 |
| 33 | Locknut: Cable Adjuster | B30/247 |
| 34 | Carburettor Top | 776-19002 |
| 35 | Gasket: Carburettor Top | VM38/127 |
| 36 | Spring: Throttle Valve Return | 730-16003 |
| 37 | Needle Jet | 785-24001-size |
| 38 | Baffle: Main Jet | VM34/454 |
| 39 | Main Jet | 4/042-size |
| 40 | O-ring: Float Valve Assy | KV10 |
| 41 | Float Valve Assy | 786-46001-size |
| 42 | Retaining Plate: Float Valve Assy | VM24/560 |
| 43 | Screw: Retaining Plate | C2=0406 |
| 44 | Vent Hose | 888-24001 |
| 45 | Gasket: Carb Body | VM36/166 |
| 48 | ScrewL Carburettor Body | CW2=0412 |
| 49 | Pilot Air Screw | VM24/622 |
| 50 | Spring: Pilot Air Screw | VM32/320 |
| 51 | Washer: Pilot Air Screw | VM12/33 |
| 52 | O-ring: Pilot Air Screw | N133037 |
| 53 | Main Air Jet | BS30/97-size |
| 54 | Vent Hose | 888-23014 |
| 55 | Starter Jet | VM17/1002-size |
| MOUNT TYPE | Spigot | MAIN JET | 4/042-Size | 280 |
| TICKOVER POSITION | Top | PILOT JET | VM22/210-Size | 50 |
| COLD START POSITION | Left | NEEDLE JET | 785-24001-Size (389) | Q-6 |
| COLD START TYPE | Knob | JET NEEDLE | 6FJ40 | Clip groove #3 |
| AIR SCREW POSITION | Left | STARTER JET | VM17/1002-Size | 100 |
| FLANGE PITCH (MM) | — | PILOT AIR JET | — | — |
| CLAMP DIA (MM) | — | PILOT AIR SCREW | VM24/622 | 1.5 Turns out |
| FRONT SPIGOT DIAMETER (MM) | 43 | MAIN AIR JET | BS30/97-Size | None Fitted |
| REAR SPIGOT DIAMETER (MM) | 62 | POWER JET | — | — |
| LENGTH (MM) | 100 | THROTTLE VALVE | 832-43002-Size | 4.0 |
| HEIGHT OVER BORE CENTRELINE (MM) | 110 | FLOAT VALVE | 786-46001-Size | 3.3 |
| HEIGHT UNDER BORE CENTRELINE (MM) | 80 | — | — | — |
| FUEL INLET POSITION | Right | — | — | — |
| FLOAT HEIGHT (MM) | 18 | — | — | — |
| BOSS FOR POWER JET NOZZLE | TOP | — | — | — |
| FUEL SPIGOT (MM) | 8 |
