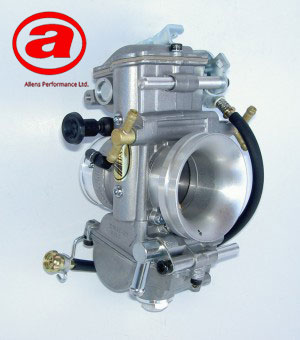

TMR41-22 Data Set
| Position | Part Number | Description |
| 1 | TMR40/128 | Float Bowl, #1 |
| 2 | TMR40/150 | Float Bowl, #2 |
| 3 | TMR40/158 | Float Bowl, #3 |
| 4 | TMR40/160 | Float Bowl, #4 |
| 5 | 776-37003 | Carburettor Top Cover |
| 6 | Model Dependent | Adaptor: Velocity Stack |
| 7 | Model Dependent | Spacer: Carb Body Pitch |
| 8 | Model Dependent | Spacer: Carb Body Pitch |
| 9 | Model Dependent | Spacer: Carb Body Pitch |
| 10 | Model Dependent | Spacer: Carb Body Pitch (Threaded) |
| 11 | Model Dependent | Spacer: Carb Body Pitch (Threaded) |
| 12 | Model Dependent | Screw: Carb Grouping |
| 13 | Model Dependent | Screw: Carb Grouping |
| 14 | Model Dependent | Screw: Carb Grouping |
| 15 | TMR40/63 | Spacer (Spring Anchor) |
| 16 | TMR40/07 | Gasket: Carb Top |
| 17 | TMR40/06 | Retainer: Jet Needle |
| 18 | TM32/90 | E-clip: Jet Needle |
| 19 | N105105 | Washer: Jet Needle (Plastic) |
| 20 | J8-##### | Jet Needle |
| 21 | TMR40/76 | Lifting Arm: Throttle Valve (Fixed) |
| 22 | TMR40/62-1A | Screw: Fixing Fixed Throttle Valve Lifting Arm |
| 23 | N167124 | Spacer: Fixed Lifting Arm |
| 24 | N132043 | Washer: Fixed Lifting Arm |
| 25 | 832-57001-size | Throttle Valve |
| 26 | VM28/323 | Clip |
| 27 | VM44/15 | Cap: Vacuum Fitting |
| 28 | TMR40/99 | Screw: Throttle Stop |
| 29 | N3=04-B | Lock Nut: Throttle Stop |
| 30 | N211100-size | Air Jet: Pilot Circuit |
| 31 | N211100-0.0 | Air Jet: Main Circuit |
| 32 | 785-40004-size | Needle Jet |
| 33 | N224103-size | Pilot Jet |
| 34 | 697-08022-1B | Retainer: Needle Jet |
| 35 | N100604-size | Main Jet |
| 36 | N138192 | Pilot Mixture Screw |
| 37 | N138187 | Spring: Pilot Mixture Screw |
| 38 | VM12/33 | Washer: Pilot Mixture Screw |
| 39 | N133037 | O-ring: Pilot Mixture Screw |
| 40 | 786-35003-size | Float Valve Assy |
| 40a | H2-786-36011-size | Float Valve Assy (Single Carb) |
| 41 | KV/10 | O-ring: Float Valve Assy |
| 42 | VM18/233 | Filter: Float Valve Assy |
| 43 | N178058 | Screw: Retaining: Float Valve Seat |
| 44 | 859-32030 | Float Assy |
| 45 | VM20/315 | Pivot Pin: Floats |
| 46 | C2=0408 | Screw: Retaining Float Pivot Pin |
| 47 | 616-93032 | Seal: Float Bowl |
| 48 | VM14/357 | Cap: Pump Rod |
| 49 | TMR40/148 | Rod: Pump |
| 50 | N193286 | Dust Cover: Pump Rod |
| 51 | 640-11007 | Collar: Pump Rod |
| 52 | E100525 | O-ring: Cold Start, Pump |
| 53 | VM24/560 | Fork: Retaining Pump Collar |
| 54 | CW2=408 | Screw: Pump Collar Retaining Fork |
| 55 | TM40/56 | Piston: Pump |
| 56 | VM14SC13/89 | Spring: Pump Piston |
| 57 | S3=0314-B | Screw: Pump Adjuster |
| 58 | 730-05005 | Spring: Pump Adjusting Screw |
| 59 | TMR40/141 | Rocker: Pump (Lower) |
| 60 | TMR40/151 | Spring: Pump Crank |
| 61 | TMR40/139 | Crank: Pump (Lower) |
| 62 | B40I/10 | Washer: Pump Crank |
| 63 | BSW28/70 | E-clip: Pump Crank |
| 64 | TMR40/14-size | Pump Nozzle |
| 65 | N124063 | Seal: Pump Nozzle |
| 66 | TMR40/134 | Link Rod: Pump (Upper) |
| 67 | S3=0308-B | Screw: Pump Adjuster |
| 68 | N2=03-B | Lock Nut: Pump Adjuster |
| 69 | Model Dependent | Bracket: Throttle Cables |
| 70 | B3=0510-B | Screw: Throttle Cable Bracket |
| 71 | N133146 | Tickover Screw |
| 71a | TMR41/11 | Flexible adjuster used on huskies etc 8″ long |
| 72 | 826-05003 | Spring Seat: Tickover Screw |
| 73 | 730-08012 | Spring: Tickover Screw |
| 74 | N141217 | Washer: Tickover Screw |
| 75 | VM28/254 | O-ring: Drain Screw |
| 76 | TM32/41-B | Screw: Drain |
| 77 | 925-18003 | Spacer |
| 78 | TMR40/61 | Spring: Throttle Return |
| 79 | Model Dependent | Throttle Shaft |
| 80 | Model Dependent | Slider: Cold Start |
| 81 | N106211 | Cap: Cold Start |
| 82 | 640-11006 | Retainer: Cold Start |
| 83 | VM16/42 | Spring: Cold Start |
| 84 | N151038 | Plunger: Cold Start |
| 84a | VM38/148 | Plunger: Cold Start (Single Carb) |
| 85 | TMR40/147 | Knob: Cold start |
| 86 | B40I/56 | E-clip: Cold Start |
| 87 | N198065 | Spring Plate: Cold Start Slider |
| 88 | TMR40/143 | Fork: Cold Start Plunger |
| 89 | N178023 | Spacer: Cold Start Clip |
| 90 | TMR40/04 | Screw: Cold Start Fork, Stack Adaptor |
| 91 | Model Dependent | Spigot: Front of Carb |
| 92 | Model Dependent | O-Ring: Front Spigot |
| 93 | Model Dependent | Hose: Pump Transfer |
| 94 | Model Dependent | Hose: Pump Transfer |
| 95 | Model Dependent | T-piece: Breather |
| 96 | TMR40/04-1A | Screw: Carb Top, Float Bowl |
| 97 | W4-04-B | Spring Washer: Carb Top |
| 98 | Model Dependent | T-piece: Fuel Inlet |
| 99 | N198006 | Seal: Fuel T-piece |
| 100 | Model Dependent | Velocity Stack |
| 101 | 730-09044 | Spring: Cold Start Slider |
| 102 | TMR40/73 | Lifting Arm: Throttle Valve (Adjustable) |
| 103 | TMR40/62-1B | Screw: Throttle Valve Lifting Arm Synchronisation |
| 104 | TMR40/05 | Lock Nut: Throttle Valve Lifting Arm Synchronisation |
| 105 | TMR41/01-1C | Throttle Postition Sensor (TPS) (TMR41-23) |
FUEL SPIGOT 8MM
