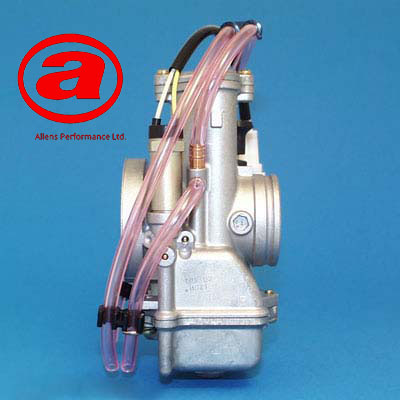

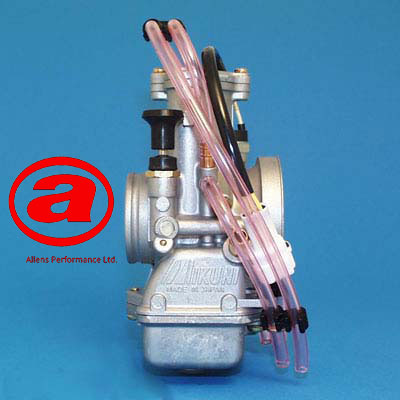

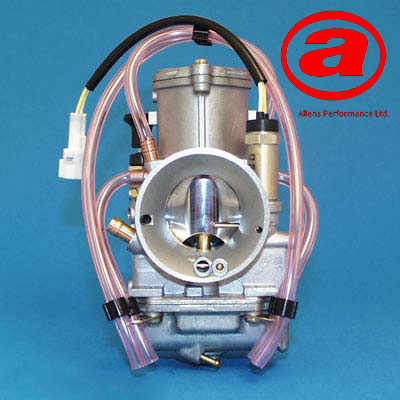

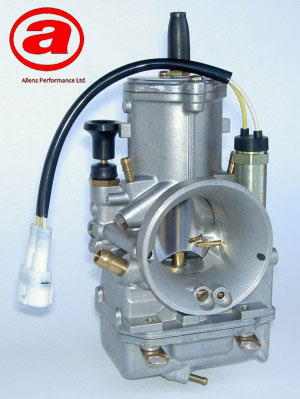

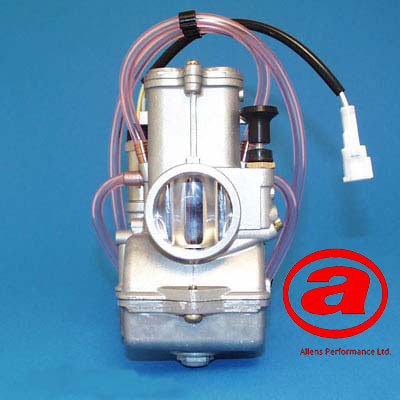

TMX38-2 Data Set
| Position | Description | TMX38-2 |
| 1 | Carburettor Body | N/A |
| 2 | Jet Needle | # |
| 3 | Carburettor Top | 776-19043 |
| 4 | Lock Nut | B30/247 |
| 5 | Dust Cover: Cable Adjuster | VM34/282 |
| 6 | Cable Adjuster | VM30/77 |
| 7 | Seal: Carb Top | 616-93055 |
| 8 | E Clip: Jet Needle | TM32/90 |
| 9 | Retainer: Jet Needle | TMR36/01 925-18001 |
| 10 | Tickover Screw | TMR36/09 |
| Nut: Tickover Locking | N138050 | |
| 11 | Spring: Tickover Screw | N138050-? |
| 12 | Cold Start Assy | VM29/47 |
| 13 | Air Screw | 603-36002 |
| 14 | Spring: Air Screw | VM15/112 |
| 15 | Float Bowl | TMR38/11-1A |
| 16 | Float/Float Valve Assy | See # 16a |
| 16a | Float Valve Assy | 786-36011-size |
| 16b | Screw: Float Valve Seat | N178058 |
| 16c | Screw: Float Pivot Pin | C2=0408 |
| 16d | N/A | N/A |
| 17 | Pilot Jet | N224103-size |
| 18 | Main Jet | 4/042-size |
| 19 | O-ring: Float Valve | KV/10 |
| 20 | Needle Jet | Fixed |
| 21 | Baffle: Main Jet | TMR38/09 |
| 22 | Power Jet | VM17/1002-size |
| 23 | Stop: Float | N/A |
| 24 | Screw: Carb Top | C2=0414 |
| 25 | Throttle Valve | 832-42016-size |
| 26 | Spring: Throttle Valve | 730-12040 |
| 27 | Vent Hose | 888-23041 |
| 28 | Screw: Float Bowl | C2=0514 |
| 29 | Overflow Hose | VM20/594 |
| 30 | Float (Left) | 859-32035 (pair) |
| 31 | O-ring: Drain Screw | VM26/227 |
| 32 | Drain Screw | 894-80001 |
| 33 | Float (Right) | See # 30 |
| 34 | Seal: Float Bowl | 616-93054 |
| 35 | Pin: Float Arm | VM20/315 |
| 36 | Float Arm | See # 30 |
| 37 | Drain Screw | N/A |
| 38 | Seal: Drain Screw | N/A |
| 39 | O-ring: Air Screw | N/A |
| 40 | Washer: Air Screw | N/A |
| 41 | Hose: Power Jet | N/A |
| 42 | Plunger: Cold Start | See # 12 |
| 43 | Spring: Cold Start | See # 12 |
| 44 | Retaining Nut: Cold Start | See # 12 |
| 45 | Dust Cover: Cold Start | See # 12 |
| 46 | Cable Adjuster: Cold Start | See # 12 |
| 47 | Lock Nut: Cold Start | See # 12 |
| 48 | Lock Washer: Cold Start | See # 12 |
| 49 | Lever: Cold Start | See # 12 |
| 50 | Indexing Plate: Cold Start | See # 12 |
| 51 | Power Jet Body | N/A |
| 52 | Solenoid: Power Jet | TM38/87-1A |
| 53 | O-ring: Power Jet | BV30/40 |
| 54 | O-ring: Power Jet | BV32/04 |
| 55 | Screw: Power Jet | N/A |
| 56 | Blanking Screw: Power Jet | N/A |
| 57 | Seal: Power Jet | N/A |
| 58 | O-ring: Power Jet | N/A |
| 59 | Breather Junction | N/A |
| MOUNT TYPE | Spigot | MAIN JET | 4/042-Size | 310 |
| TICKOVER POSITION | Left | PILOT JET | N224103-Size | 20 |
| COLD START POSITION | Left | NEEDLE JET | Fixed | — |
| COLD START TYPE | Knob | JET NEEDLE | 6BEG18-68 | Clip groove #3 |
| AIR SCREW POSITION | Left | STARTER JET | Fixed | — |
| FLANGE PITCH (MM) | — | PILOT AIR JET | — | — |
| CLAMP DIA (MM) | — | PILOT AIR SCREW | 603-36002 | 1.75 Turns out |
| FRONT SPIGOT DIAMETER (MM) | 46 | MAIN AIR JET | Fixed | — |
| REAR SPIGOT DIAMETER (MM) | 62 | POWER JET | VM17/1002-Size | 50 |
| LENGTH (MM) | 75 | THROTTLE VALVE | 832-42016-Size | 5.0 |
| HEIGHT OVER BORE CENTRELINE (MM) | 75 | FLOAT VALVE | 786-36011-Size | 3.8 |
| HEIGHT UNDER BORE CENTRELINE (MM) | 75 | — | — | — |
| FUEL INLET POSITION | Left | — | — | — |
| FLOAT HEIGHT (MM) | 6 | — | — | — |
