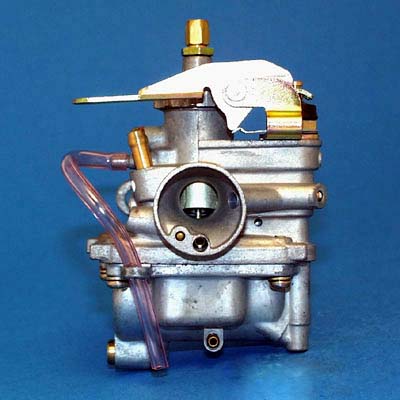

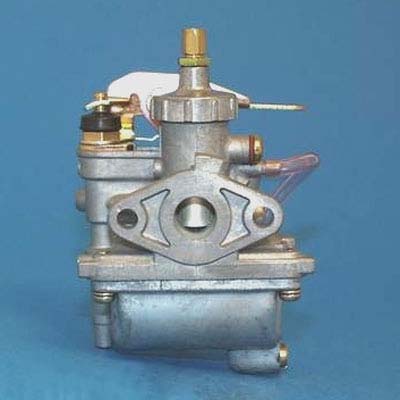

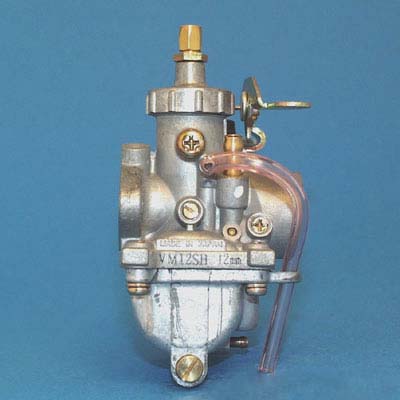

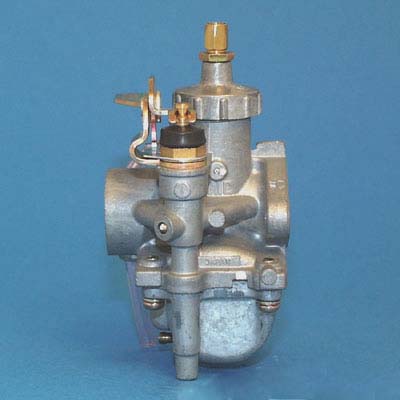

VM12-8069 Data Set
| Position | Description | VM12-8069 |
| 1 | Dust Cover: Cable Adjuster | 30BIC/84 |
| 2 | Cable Adjuster | M21/14 |
| 3 | Locknut: Cable Adjuster | B20/247 |
| 4 | Carburettor Top | VM17/200 |
| 6 | Spring: Throttle Return | VM14/151 |
| 7 | Retaining Plate: Jet Needle | VM14a/38 |
| 8 | E Clip: Jet Needle | MD14/40 |
| 9 | Jet Needle | # Variable Size |
| 10 | Throttle Valve | VM12/101-size |
| 11 | Needle Jet | VM12-95-size |
| 12 | Dust Cover: Cold Start Assy | VM20/455 |
| 13 | Retainer: Cold Start Assy | VM20/456 |
| 14 | Lever: Cold Start Assy | VM16/142 |
| 15 | Indexing Plate | VM16/145a |
| 16 | Spring: Cold Start Assy | VM14SC13/89a |
| 17 | Plunger: Cold Start Assy | VM15/62 |
| 19 | Gasket: Float Bowl | VM14/163 |
| 21 | Pilot Jet | M28/1001-size |
| 22 | Pivot: Float Arm | VM20/315 |
| 23 | Float Arm | See Pos 24 |
| 24 | Float | VM14/191a |
| 25 | Float Bowl | VM16/163-40 |
| 26 | Gasket: Float Bowl Drain Screw | VM22/184 |
| 27 | Float Bowl Drain Screw | VM22/185 |
| 28 | Main Air Jet | Fixed |
| 29 | Pilot Air Screw | MD16/15a |
| 30 | Spring: Pilot Air Screw | M12F/46a |
| 31 | Spring: Tickover Screw | M12F/46a |
| 32 | Tickover Screw | VM15/30 |
| 33 | Gasket: Float Valve Assy | 616-00001 |
| 34 | Float Valve Assy | VM14/193-size |
| 36 | Main Jet | N100604-size |
| 37 | Retainer: Vent Hose | N/A |
| 38 | Screw: Float Bowl | CW2=0414 |
| MOUNT TYPE | Flange | MAIN JET | N100604-Size | 57.5 |
| TICKOVER POSITION | Left | PILOT JET | M28/1001-Size | 20 |
| COLD START POSITION | Left | NEEDLE JET | VM12/95-Size (278) | E-0 |
| COLD START TYPE | Lever | JET NEEDLE | 3D16 | Clip groove #3 |
| AIR SCREW POSITION | Left | STARTER JET | Fixed | — |
| FLANGE PITCH (MM) | 42 | PILOT AIR JET | — | — |
| CLAMP DIA (MM) | — | PILOT AIR SCREW | MD16/15A | 1.5 Turns out |
| FRONT SPIGOT DIAMETER (MM) | — | MAIN AIR JET | Fixed | — |
| REAR SPIGOT DIAMETER (MM) | 28 | POWER JET | — | — |
| LENGTH (MM) | 57 | THROTTLE VALVE | VM12/101-Size | 2.0 |
| HEIGHT OVER BORE CENTRELINE (MM) | 58 | FLOAT VALVE | VM14/193-Size | 1.2 |
| HEIGHT UNDER BORE CENTRELINE (MM) | 55 | — | — | — |
| FUEL INLET POSITION | Left | — | — | — |
| FLOAT HEIGHT (MM) | 22 | — | — | — |
